Firebird for the Database Expert: Episode 2 - Page Types

by Ann Harrison

Database File

A Firebird database is a sequence of fixed length pages normally all contained in a single file.

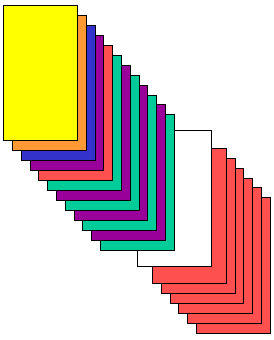

Different pages have different functions - in this case the yellow page is the database header, followed by a PIP, the unused WAL, a pointer page, a data page, then alternating index root and pointer pages. The white page indicates that the diagram skips several hundred pages then continues with data pages.

Multi-file database

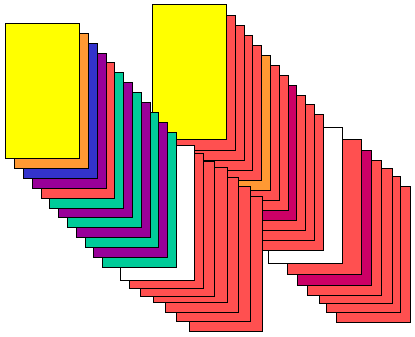

A multi-file database breaks the sequence into multiple files, each with a header page. Aside from the extra header pages, there is no difference between a multi-file database and a single file database.

Generic Page Header

Each page has a header that indicates what type of page it is, and provides other information that applies to all pages. Most page types have addition header information that follows the standard header.

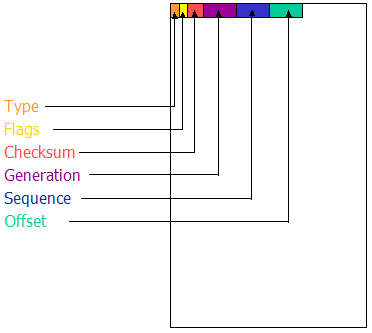

In the standard header, the first byte is the page type.

The next byte contains flags that are specific to individual page types. Currently, only blob pages and b-tree (index) pages use the page flags. Other page types - the header for one - also have a separate area for flags.

The next two bytes were a checksum, but now always contain the value 12345.

The next four bytes are the page generation incremented each time the page is written.

The next eight bytes are reserved for the sequence and offset of the page’s entry in a log. The logging project has been abandoned and those bytes are waiting for a good use.

Header Page

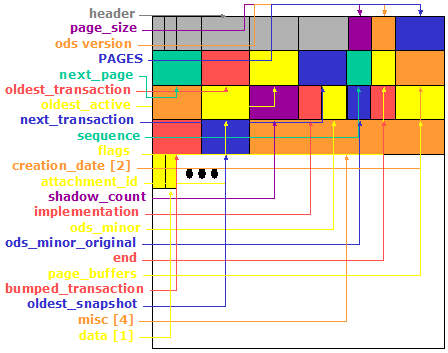

Page Type 1 is a header page. Each database file has one header page, which is page 0 in the file.

The first header page in a database describes the database: the page size, next transaction id, various settings, etc.

The header pages of subsequent files in the database contain only the length of the current file and the name of the next file.

A full discussion of the contents of the header page is available here.

Page Inventory Page

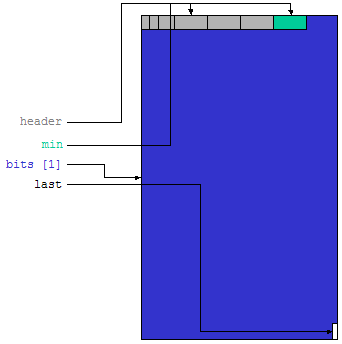

Page Type 2 is a page inventory page (PIP). PIPs map allocated and free pages. The header of a PIP includes the offset on this page of the bit that indicates the first available page on the PIP.

The body of a PIP contains an array of single bits that reflect the state of pages in the database. If the bit is one, then the corresponding page is not in use. If the bit is zero, then the page is in use.

PIPs occur at regular intervals through the database, starting at page 1. The last page allocated on each PIP is the next PIP.

Transaction Inventory Page

Page Type 3 is a transaction information page (TIP). The TIP header includes the address of the next TIP.

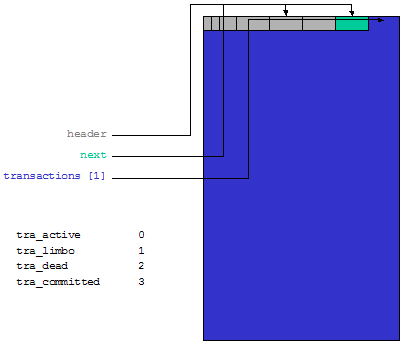

The body of a TIP is an array of pairs of bits that reflect the state of transactions. If both bits are 0, the transaction is active or has not started. If both bits are 1, the transaction is committed. If the first bit is 1 and the second bit is 0, the transaction rolled back. If the first bit is 0 and the second is 1, the transaction is in limbo.

Limbo is the state of a two phase transaction that has completed the first phase, but not the second.

Pointer Page

Page Type 4 is a pointer page. Each pointer page belongs to a particular table and has a specific sequence within the table

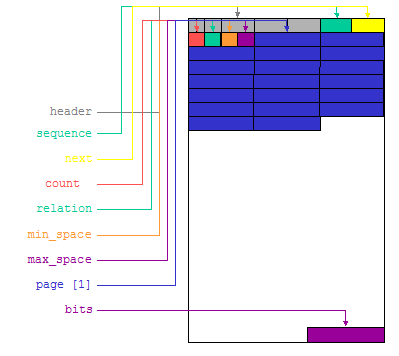

The additional header information on a pointer page includes its sequence in the pointer pages for this table, the page number of the next pointer page for the table, the next free slot on the page, the number of used slots on the page, the relation id of the table, the offset of the first slot on the page that indicates a page that is not full, and the offset of the last slot on the page that indicates a data page that is not full.

Pointer pages contain arrays of 32-bit integers that contain the page numbers of pages in a table.

At the bottom of the pointer page, an array of bits indicates the fill level of each page.

Data Page

Page Type 5 is a data page. Each data page belongs to a specific table.

The additional header information in a data page is the position of this page in the list of data pages the table, the relation id of the table, and the number of entries on this page.

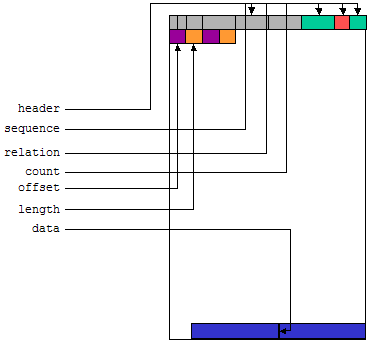

The body of a data pages starts with an array of pairs of 16 bit words. The first part of the pair is the offset on the page of a piece of data - a record, blob, or record fragment. The second part of the pair is the length of the data. As more data is stored on the page, the index grows downward.

The data - records, blobs, and fragments - start at the end of the page and go upward.

Index Root Page

Page Type 6 is an index root page. Each table has a single index root page that describes the indexes for the table. This page describes it IRT in Firebird 1.5 and earlier.

The additional header information for an index root page is the identifier of the relation to which the page belongs, and a count of the number of indexes for that table.

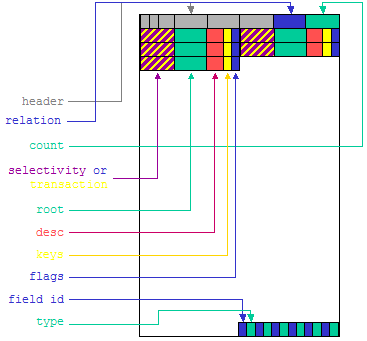

The body of an index root page contains an array of index descriptors coming down from the top of the page and an array of index segment descriptors coming up from the bottom.

Each index descriptor starts with the selectivity if the index has already been created, or a transaction id if index is being created. The next 32 bits are the page number of the top of the actual index. Next is the 32-bit offset of the field descriptors for the index at the bottom of the page. The next byte is the number of key fields, then a flag byte.

The array of segment descriptors contains two bytes per segment, one for the field id and one for the field type.

BTree Page

Page Type 7 is an index or b-tree page.

All indexes in Firebird are a b-tree variant, starting with a single page at the top - confusingly called the root - confusing both because the root is at the top and because the root of an index is different from the table’s index root page.

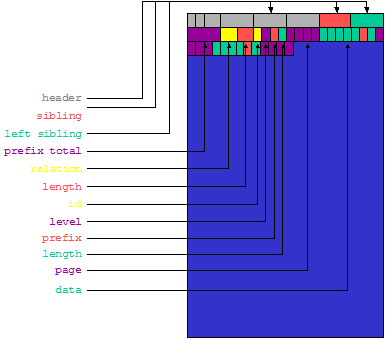

The additional header data in a b-tree page includes the number of the page with the next higher values for this level of the index, the address of the page with the next lower values for this level, the total amount of space which is saved on this page by the use of prefix compression, the relation id of the table this index describes, the amount of space used on this page, the identifier of the index in which this page participates, and the level of this page in the index.

The rest of the page is filled with index entries.

Blob Page

Page Type 8 is a blob page. Small blobs are stored on data pages. Blobs larger than a page are stored on a sequence of blob pages.

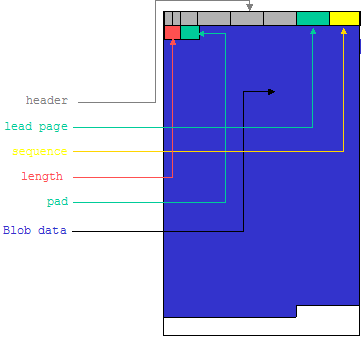

The type-specific header information for a blob page includes the page number of the first page of this blob, the position (sequence) of this page in the list of pages that contain the blob, the amount of data stored on the page, and a pad word to allow the blob data to start on a long word boundary.

The remainder of the page contains blob data for a single blob.

Generator Page

Page Type 9 is a generator page.

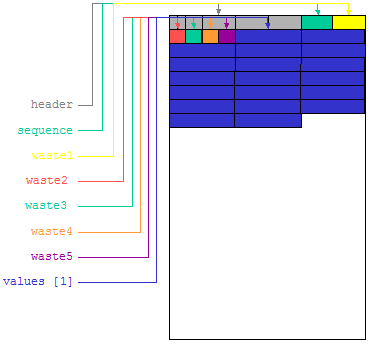

There is no extra information in the header of a generator page, but there are several wasted words. Originally generator pages were a subset of pointer pages and did not have their own type. When generators were extended from 32 to 64 bits, having a separate page type became important, but changing the header would have invalidated old databases. Sometime we ought to fix that and add a sequence number to the generator page header.

A generator page contains an array of 64-bit integers. Each element of the array contains the current value of a generator.
